1969 CHEVELLE SS
Interior Upgrades
I have plans to upgrade the mostly original interior in three stages. First the current Hurst shifter handle and ball will be swapped out for correct reproductions of both the Muncie handle and black ball which is correct for a bucket seat, non console car. Second stage will be changing the current fuel gauge/idiot lights for an original 5500 RPM tach and gauge cluster along with hooking up the factory AM radio. The installation of the factory tach and gauges will also require changes to the factory wiring harness. The last change which is scheduled for the winter of 2015, will be to replace all the seat covers, seat foam, door panels and arm rests. The seat covers are circa 1992 and the balance of the interior is original. The carpet and head liner were replaced after the body restoration in 2009.
Shifter Handle & Ball Replacement

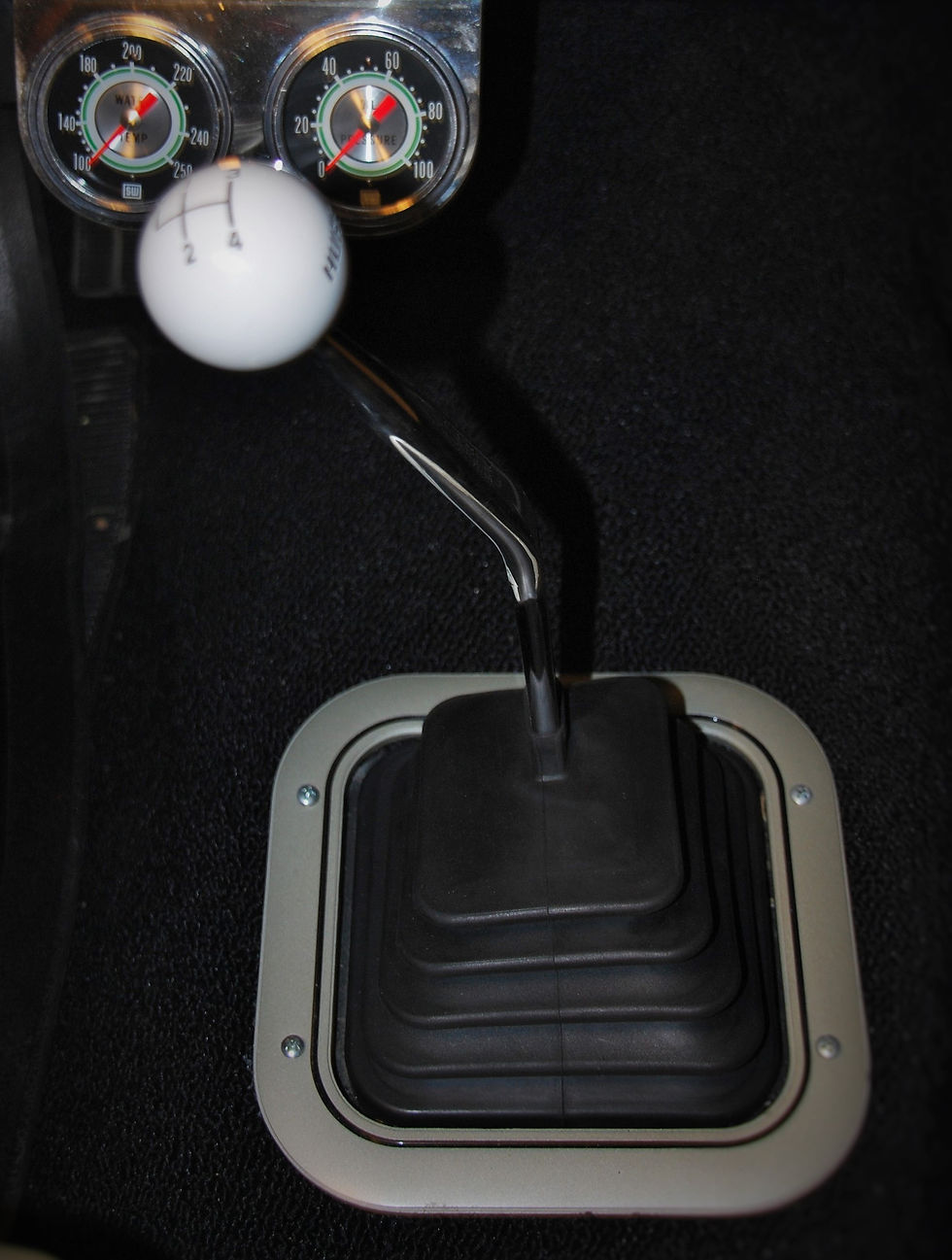

Current Hurst shifter handle & ball

Shifter boot is off, ready to unbolt

Ready for the new Muncie handle... good view of the extra clean M20 tranny

Reproduction Muncie bucket seat shifter installed

Two piece black reproduction shifter ball installed. The black ball is correct for buckets without console applications.
Factory Tach & Gauges

Steering wheel pulled...

Almost ready to remove the gauges

Gauges out

Factory original tach and gauges

View of updated tach PCB with trim pot

Gauges back together ready for installation into the dash.

Gauges ready to be reinstalled

Gauges ready to be bolted up

All buttoned up

Drivers view
Factory AM Radio & Speaker

Original Delco AM Radio

Arrow indicates hard to find GM Radio bracket

SM Electro-Tech reproduction 4x10 dash speaker

Speaker installed using factory speaker bracker

Front view showing original speaker wire harness
Interior Replacement

Front and rear seats were sent to Gary Nolan at Diamond Trim for recovering.

New seat foams installed and drivers seat spring replaced

New parchment cloth was sew in to the PUI covers to provide better bite for the hog rings

Premium PUI front and rear door panels were installed along with new handles and window cranks

Rear seat covers replaced...room for 3 back here
